Specifications, size by size

Weights are per piece as catalogued. Finishes, heads and lengths can be made to order — if a size you need is not listed, ask, because we manufacture as well as trade.

Cuplock Standard / Vertical Ledger / Horizontal MS Challi (Walkway Platform)U Jack (U Head)Base Jack MS Adjustable Prop Jack Shuttering Plate Spigot / Joint Pin Steel Planks Shuttering Channel MS Pipe Sheet Coupler / Clamp

Cuplock system

Cuplock Standard / Vertical

The load-bearing upright of a cuplock scaffold. Forged top and bottom cups are set every half metre, so ledgers lock in at fixed lifts without loose wedges or couplers — faster to erect, and far quicker to inspect. Manufactured from ISI-marked pipe and finished in Oxford blue enamel.

Pipe1.5 inch
Outside diameter50 mm
PaintOxford enamel
ColourBlue
Pipe gradeISI marked
Cup setEvery 0.5 m

Sizes available
Size	Weight / piece
0.5 Mtr	3 kg
1.0 Mtr	5 kg
1.5 Mtr	7 kg
2.0 Mtr	9 kg
2.5 Mtr	11 kg
3.0 Mtr	13 kg

Enquire about this Hire it instead

Cuplock system

Ledger / Horizontal

Ledgers tie the standards together and set the bay width. Each end carries a pressed ledger blade that seats into the cup and locks under the top cup — a single hammer tap makes the joint. Supplied in the bay sizes Indian sites actually set out in.

Pipe1.5 inch
Outside diameter50 mm
PaintOxford enamel
ColourBlue
Pipe gradeISI marked
BladeBest-quality ledger blade

Sizes available
Size	Weight / piece
0.915 Mtr	3.1 kg
1.0 Mtr (950 mm)	3.3 kg
1.2 Mtr (1150 mm)	4.2 kg
1.5 Mtr (1450 mm)	5 kg
1.8 Mtr (1750 mm)	5.5 kg
2.0 Mtr	6 kg

Enquire about this Hire it instead

Access & platforms

MS Challi (Walkway Platform)

Challi spans between ledgers to make the working platform. The welded U-section deck takes foot traffic, barrow loads and stacked material without deflecting, and stacks flat for transport between sites.

U plate size0.75 × 0.75 mm
PaintOxford enamel
ColourBlue
Pipe gradeISI marked

Sizes available
Size	Weight / piece
300 mm × 2 Mtr	13 kg
452 mm × 2 Mtr	17 kg
300 mm × 1.8 Mtr	11 kg
452 mm × 1.8 Mtr	14 kg

Enquire about this Hire it instead

Jacks & props

U Jack (U Head)

A U head sits on top of the standard and carries the primary timber or steel beam. The threaded stem takes out the last few centimetres of level, which is where slab accuracy is won or lost. Available in hollow and solid stems.

U plate size152 × 152 mm
Plate weight900 gm
Stem OD28 / 30 / 32 mm
PaintOxford enamel
ColourBlue

Sizes available
Size	Hollow	Solid
14 inch	2.8 kg	2.8 kg
18 inch	3.6 kg	3.6 kg
24 inch	4.5 kg	4.5 kg

Enquire about this Hire it instead

Jacks & props

Base Jack

Base jacks sit under every standard. The 152 mm plate spreads the point load onto sole boards or slab, and the threaded stem levels the lift on ground that is never as flat as the drawing says it is.

Base plate size152 × 152 mm
Plate weight900 gm
Stem OD28 / 30 / 32 mm
PaintOxford enamel
ColourBlue

Sizes available
Size	Hollow	Solid
14 inch	3.0 kg	3.0 kg
18 inch	3.8 kg	3.8 kg
24 inch	4.6 kg	4.6 kg

Enquire about this Hire it instead

Jacks & props

MS Adjustable Prop Jack

A telescopic prop adjusts across its full range on a coarse thread and pin, then fine-adjusts on the nut. Heads are made to order — beam head, U head, angle head, flat head or regular — so the same prop suits slab soffits, beam bottoms and raking support.

Outer tube OD60 mm
Inner tube OD50 mm
Top & bottom plate152 × 152 × 60 mm
NutWith or without handle
HeadsBeam, U, angle, flat, regular
PaintOxford blue enamel

Sizes available
Size	Weight / piece
2 × 2 Mtr	17 kg
2 × 3 Mtr	21 kg
3 × 3 Mtr	24 kg

Enquire about this Hire it instead

Formwork

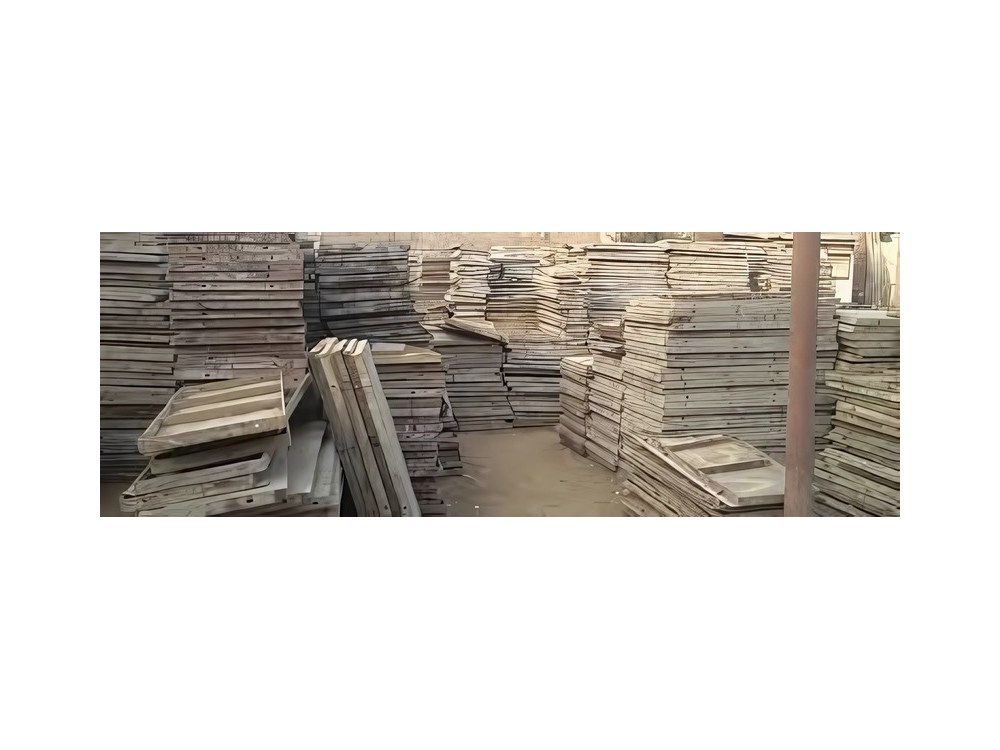

Shuttering Plate

The panel that actually forms the concrete. Built from 2–3 mm sheet on a stiffening angle frame, in welded or riveted construction, and finished in Oxford blue enamel. We manufacture new plate and also carry sound reconditioned stock, which is where most sites save money.

Angles25×5, 30×5, 35×5, 45×5, 52×5
Sheet2 mm, 2.5 mm, 3 mm
PaintOxford blue enamel
ConstructionWelded or riveted

Sizes available
Size	Weight / piece
1 × 3 ft (300 × 900)	15 kg
1.5 × 3 ft (450 × 900)	18 kg
2 × 3 ft (600 × 900)	21.5 kg
2 × 4 ft (600 × 1200)	25 kg

Enquire about this Hire it instead

Cuplock system

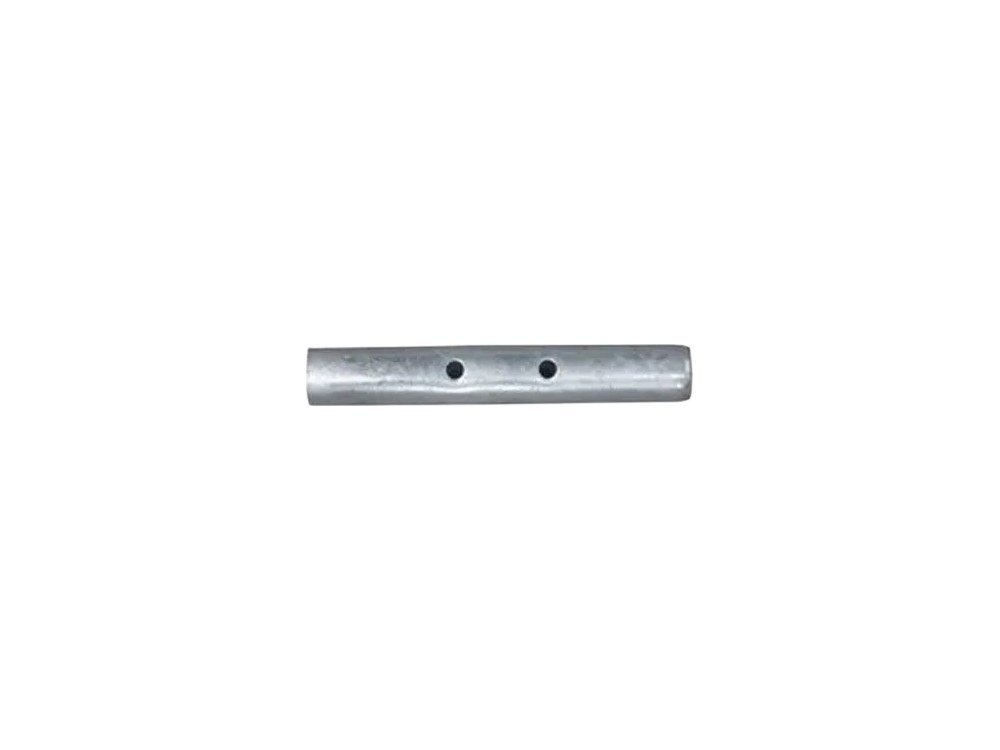

Spigot / Joint Pin

A spigot joins standards end to end so a scaffold can be built as high as the design allows. Turned from MS and pinned through, it keeps the two tubes concentric and stops the joint working loose under load.

Weight520–700 gm
ShapeRound
MaterialMS
ColourBlue (on order only)

Enquire about this Hire it instead

Access & platforms

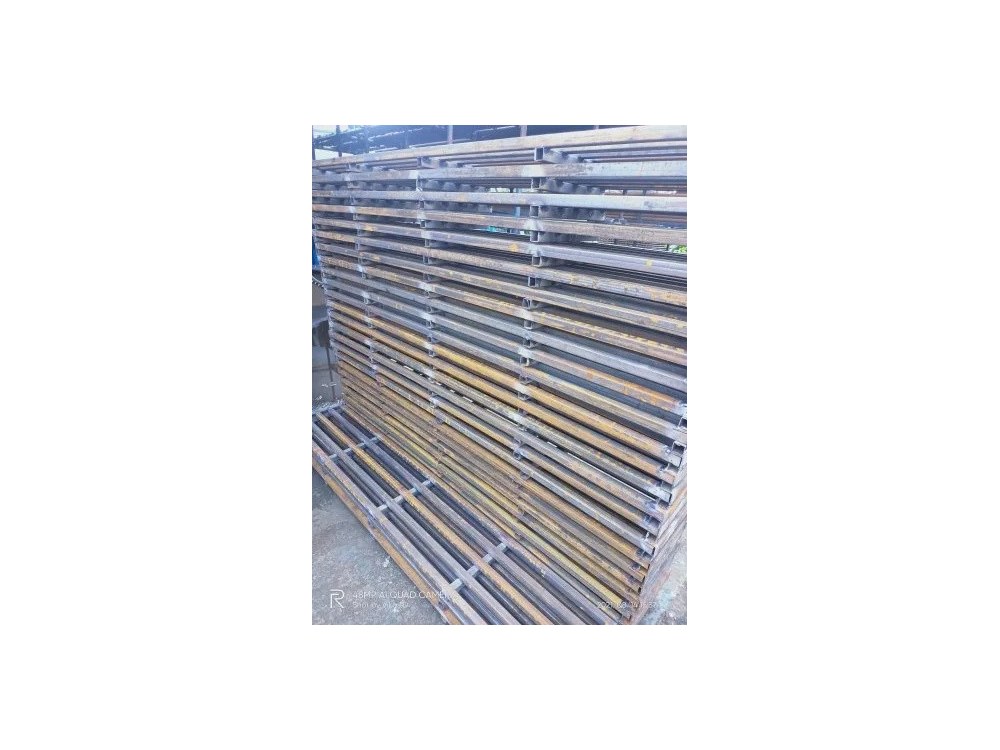

Steel Planks

Steel planks replace timber boards on the working platform. Punched slots shed water, resist slipping and cut weight; a rolled stiffener down the centre holds the load-bearing capacity, and the boxed side sections resist deforming. Galvanised finish for long outdoor exposure, painted for general site use.

Thickness1.1–2.0 mm
Length1000–4000 mm
FinishGalvanised or painted
SurfacePunched anti-slip

Sizes available
Type	Width	Height
210	210 mm	45 mm
225	225 mm	38 mm
240	240 mm	45 mm
250A	250 mm	40 mm
250B	250 mm	50 mm
300	300 mm	50 mm

Enquire about this Hire it instead

Formwork

Shuttering Channel

Channel runs behind and along the plate to keep a formwork line straight over long pours, and to carry the tie loads back into the walers. Supplied in mild steel, grey.

ShapeRectangular
MaterialMS
ColourGrey

Enquire about this Hire it instead

Tube & fitting

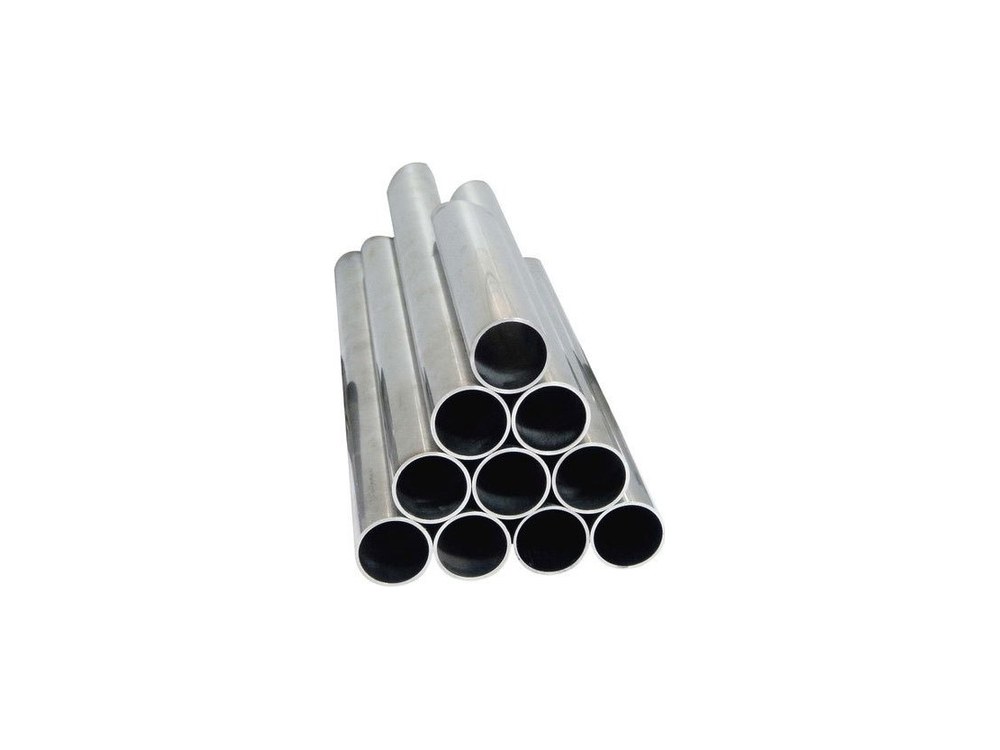

MS Pipe

Plain tube for tube-and-fitting scaffold, raking shores, edge protection and handrails — the part of the scaffold that has to be cut to suit whatever the building is doing.

ShapeRound
MaterialMS
Length10 ft / 20 ft

Enquire about this Hire it instead

Tube & fitting

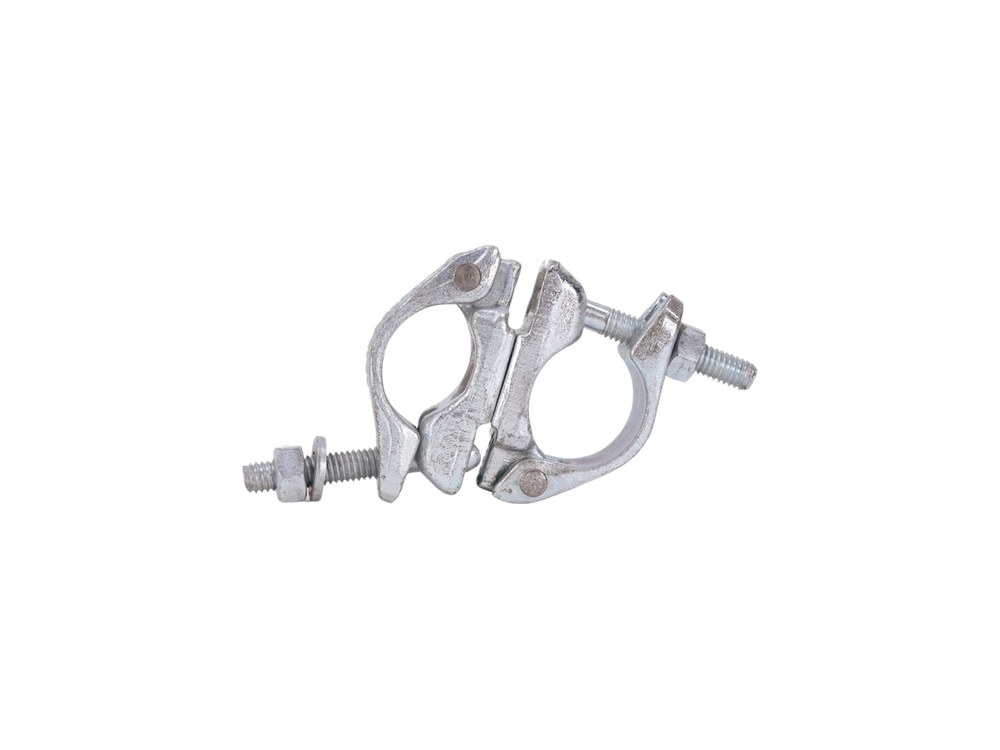

Sheet Coupler / Clamp

Couplers make the tube-and-fitting scaffold. The fixed coupler joins two tubes at 90°; the moveable (swivel) coupler takes any angle, which is what you need for bracing and raking members. Pressed and forged patterns available.

TypesFixed & moveable (swivel)
UseJoins two scaffold tubes
Angle90° fixed / any angle swivel

Enquire about this Hire it instead

Not sure what you need, or how much?

Send the slab area and the number of floors, or a bill of quantities, and we will work out the piece counts and the tonnage for you — for purchase or for hire. There is no charge for the take-off, and no obligation attached to it.

Send your requirement +91 96502 09409

Every size in the catalogue, in stock or in production.

New manufacture, reconditioned stock and hire fleet — from the same yard, on the same delivery note.

Request a quote +91 96502 09409
